BMS-Equipped Lithium Battery Storage for Residential and Commercial Applications

Brand Name : TP

Model Number : L130

Certification : CE

Place of Origin : China

MOQ : 10 units

Price : consult prices online

Payment Terms : T/T

Packaging Details : consult online

Battery Voltage : 51.2V

Usable Energy : 5990Wh

Max Charge Current : 100A continuous, 150A pulse (1 second)

Cycle Life : >8000 cycles

Communication : CAN, RS485

Protection : Overcharge, Over-discharge, Overcurrent, Short-circuit, Over-temperature protection

Contact Now

BMS-Equipped Lithium Battery Storage for Residential and Commercial Applications

BMS-Equipped Lithium Battery Storage for Residential and Commercial Applications

Product Description:

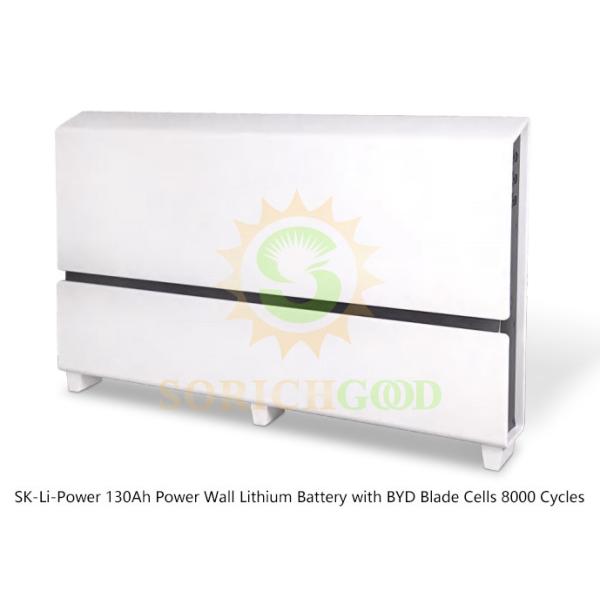

The SK-51.2V130Ah LiFePO4 battery is a highly efficient energy storage system, designed for superior safety and durability. With an impressive cycle life of over 8000 cycles and a service life of more than 10 years, this battery is equipped with advanced BMS (Battery Management System) to ensure maximum protection against overcharge, over-discharge, short circuit, and over-temperature conditions. The battery is scalable, allowing for parallel connections of 1 to 15 units, making it ideal for a wide range of residential, commercial, and industrial applications.

MODEL SPECIFICATION	SK-51.2V130Ah Li-Power51.2V130AH
Battery Type	LiFePO4
Total Energy	6656Wh
Usable Energy(80%DOD)	5990Wh
Voltagewindow	44.8～58.4V
FastCharge Voltage	57.6V
Folat Charge Voltage	56.0V
Low DC Cut-offVoltage	46.8V
Max.continue discharge current	100A
Max.pulse discharge current	150A 1Sec.
Max.continuechargecurrent	65A
Scalable	1~15 in parallel
Communication	CAN,RS485
Cycle life	>8000 Cycles@(+25℃,0.5C,90%DOD,60%EOL)
Terminal	M8
Storage temperature	0℃~30℃
Storageduration	6months at 25℃
Safety standard	UN38.3,MSDS
IP degree	IP20
PROTECTION
Protection	Overcharge protection,Over discharge protection,Over current protection,Shortcircuit protection,Overtemperature protection

AMBIENT
working Temperature	-10℃~+50℃
Humidity	0~95%(no condensation)
DIMENSION
LXWXH(products size)mm	1090685120mm
LXWXH(package size)mm	1150720205mm (UN wooden cases)
Weight(NWKg)	78.6Kg
Weight(GWKg)	97.2Kg
20FT QTY(UNIT)	140

Application:

This battery system is suited for residential solar energy storage, industrial energy backup, and grid-connected systems, offering reliable energy support for home appliances, communication systems, and commercial power needs.

Shipping Methods

Supports global air and sea shipping.
